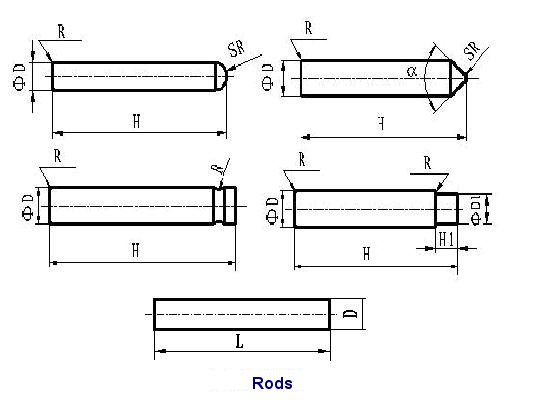

Rods are available with diameters or ends both highly polished. Rods with radius and total or partial flats and angles are available.


The Czochralski ruby used in the manufacture of our laser rods is noted for its ultra-high purity - free from inclusions, clouds, bubbles, lineage or axis misorientations.

Typical Applications: pumps, light pipes, spacers,
insulators, "sapphire piston" for HPLC system.


Available Specification of sapphire and ruby rods (mm)



Φ2×50

Φ3.175×106.68

Φ3.3×45

Φ4.763×25.4

Φ7.08×57.91

Φ2.03×25.4

Φ3.175×18.415

Φ3.556×106.68

Φ4.8×21.79

Φ7.17×41.91

Φ2.03×30.48

Φ3.175×18.45

Φ3.7×43

Φ4.82×38.1

Φ7.17×59.7

Φ2.03×98.04

Φ3.175×19.812

Φ3.9×33.65

Φ4.82×44.45

Φ7.4×100

Φ2.04×30.75

Φ3.175×26.97

Φ4×33.68

Φ5.11×50.8

Φ7.58×41.91

Φ2.06×39.25

Φ3.175×28.067

Φ4×35

Φ5.84×49.12

Φ7.87×157.48

Φ2.096×35.05

Φ3.175×31.14

Φ4×40

Φ5.95×170.18

Φ8×45

Φ2.15×57.15

Φ3.175×38.05

Φ4×50.8

Φ6×57

Φ8.86×157.48

Φ2.24×35

Φ3.175×38.1

Φ4×55

Φ6.32×22.86

Φ9×25

Φ2.245×38.1

Φ3.175×47.63

Φ4×60

Φ6.35×19.05

Φ9.5×200

Φ2.35×29.21

Φ3.175×47.65

Φ4×135

Φ6.35×25.4

Φ9.52×157.48

Φ2.36×22.86

Φ3.175×50.8

Φ4×33.86

Φ6.35×31

Φ10.05×32.51

Φ2.36×29.21

Φ3.19×41.275

Φ4×80

Φ6.35×38.1

Φ11×29

Φ2.36×31.75

Φ3.19×38.1

Φ4.06×47.6

Φ6.35×41.28

Φ11.03×35.86

Φ2.36×38.1

Φ3.19×41.275

Φ4.17×33.65

Φ6.35×46.48

Φ12.7×25.4

Φ2.36×41.275

Φ3.19×41.28

Φ4.173×33.65

Φ6.35×58.647

Φ12.75×38.15

Φ3.17×38.1

Φ3.2×29

Φ4.173×33.655

Φ6.69×170.18

Φ14×53

Φ3.17×43.64

Φ3.23×38.1

Φ4.18×33.65

Φ6.8×42

Φ16×54

Φ3.17×54.61

Φ3.24×41.28

Φ4.2×40.5

Φ6.92×170.18

Φ16×193
